The Caymas XS 21 is a breakthrough in fishing engineering that features no carpet in the boat. Instead, offering advanced marine flooring consisting of a padded non-skid boating surface, replacing carpet with a durable and comfortable new option. The compartment lids are re-enforced Fiberglass opposed to aluminum in the CX series.



XS 21 Specifications

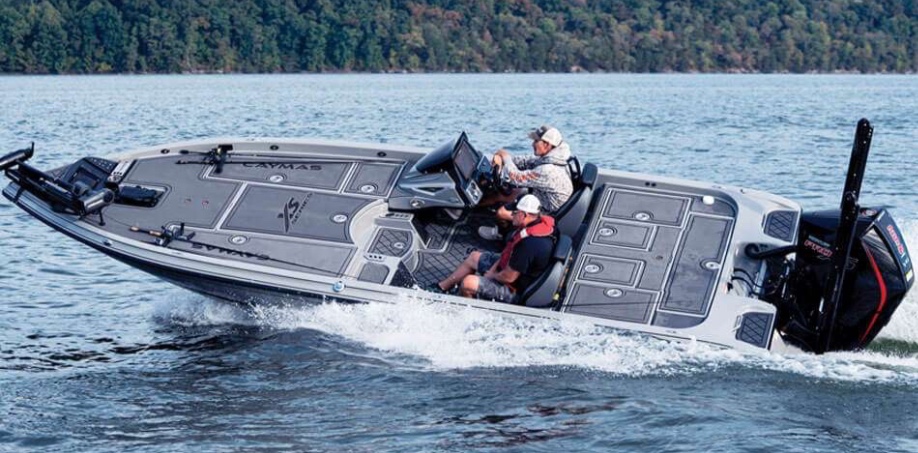

The Caymas XS 21 is a marvel of fishing engineering, setting new standards in the world of premium tournament bass boats. With an impressive length of 21 feet 4 inches and a beam width of 96 inches, this boat is designed to offer unparalleled space and performance. The XS 21 can accommodate a maximum horsepower of 300 hp, ensuring you reach your prime fishing spots faster than ever.
When you equip the Caymas XS 21 with a 250-300 hp outboard, you’re not just fishing; you’re commanding the waters. With an approximate dry weight of 2,100 lbs and a fuel capacity of 50 gallons, this boat is built for tournament anglers. Our 100% composite construction and high-performance resin guarantee a vessel designed for durability and exceptional performance.

XS 21 PRO
The Caymas XS 21 Pro is the epitome of bass fishing excellence, designed for those who accept nothing but the best. When you opt for the Pro model, you’re not just getting a boat; you’re investing in a fully-loaded fishing arsenal. This top-tier edition arrives at your Caymas dealer with a range of features that are often considered optional on other boats. The Pro model is factory-rigged with:
Lowrance Ghost 47” trolling motor
Lowrance® HDS PRO 12 at bow
Lowrance® HDS PRO 12 at console
Lowrance® 2-IN-1 Active Imaging
Lowrance Point-1 antenna
NEMA harness
Ethernet cable
Oxygen Innovations livewell system
Keel protection
Custom boat cover
Dual disc brake upgrade on trailer
Stainless steel fenders on trailer
Sea Clear Wiring Harness
Standard Features

Construction
- Limited lifetime hull warranty
- 3-year limited component warranty
- 100% composite construction – no wood
- Tri-core composite transom
- High performance resin and barrier coat
- Hull hand laid fiberglass construction
- Zero-flex fully foamed stringer system
- Premium gelcoat with UV inhibitors
- Plumbing and electrical systems factory tested
Fishing Features
- 2 independent high capacity rear insulated livewells
- (2) 800 gph livewell aerator pumps
- (2) 800 gph livewell recirculation pumps
- (2) 800 gph livewell pump-out pumpsLivewell timer
- Livewell overflow system1 bike seat and pro-pole1 fold-down fishing seat
- 2 front deck seat locations
- 3 retractable rod buckles (2 at bow, 1 at rod ramp)
- Front deck tool and plier organizer with cupholder
- 6 gauge trolling motor harness
- 10 gauge clean power harness for electronics
- Oversized bow trim switch buttons for easy foot operation
- Deck recess for trolling motor foot pedal
- Built-in fish measuring board with tool holder
- Fully finished fiberglass boxes throughout with custom mats
- LED compartment lights
- LED livewell lights
- Stainless steel bilge and livewell discharge plate
- Passenger side rod ramp
- Passenger footrest with integrated tackle/storage drawer
- Locking oversized storage boxes
- Folding fish net with custom holder
- Center bow rod box with tackle organizing system

Safety and Quality
- Automatic bilge pump
- Electric bilge pump
- Finished bilge compartment with access doors to pumps and batteries
- Built-in LED bow navigation lights
- Removeable LED stern light
- Custom digital switching with tinned wiring
- Horn
- Non-skid aft step mats
- Non-skid bow step mat
- Plexiglass tinted removeable windshield (2 on dual console)
- Recessed retractable boarding ladder
- Stainless steel boarding grab handle
- Retractable passenger grab handle
- Stainless steel passenger grab handle
- Hot Foot throttle
- LED cockpit courtesy light
- SeaStar hydraulic steering
- Tilt steering wheel
- Custom polished aluminum jackplate
- Waterproof stainless steel compartment latches
- Stainless steel bow, mid-ship, and stern pull-up cleats
Convenience and Comfort
- Custom color selection for entire boat and upholstery
- Custom suspension driver and passenger bucket seats with adjustable slides
- Aquatraction deck and cockpit flooring
- Fully finished fiberglass lids
- Stainless steel prop
- AGM cranking battery
- Custom steering wheel
- Dual Pro 4 x 15 battery charger
- Center console storage with fiberglass lid
- Driver’s console with extended leg room
- Custom 5” digital gauge with data display
- Lid pistons on storage and rod boxes
- Stainless steel bow and transom eyes
- Turn-signal trim on steering wheel (single)
- Fully insulated built-in ice chest
- 4 stainless steel drink holders in cockpit
- Remote drain plug
- Trolling motor battery trays
- Chrome fuel fill
